一、组件构成

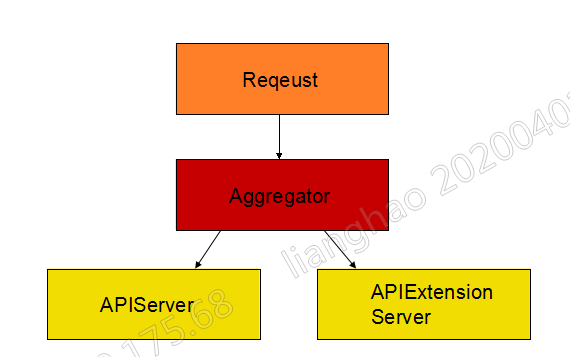

apiserver 由 3 个组件构成（AggregatorServer、APIServer、APIExtensionServer）

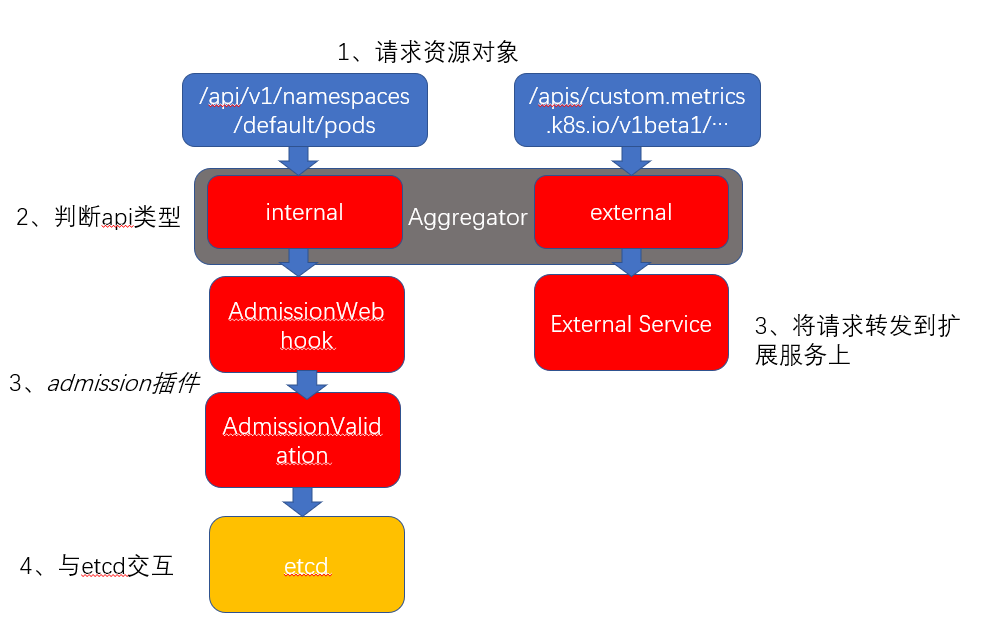

AggregatorServer：实现请求的代理转发，将来自用户的请求拦截转发给其他服务器，并且负责整个 APIServer 的服务发现功能
APIServer：负责对内建资源对象请求的一些处理，包括认证、鉴权等，以及处理各个内建资源的 REST 服务
APIExtensionServer：主要处理自定义资源对象（CR、CRD）的请求
二、程序流程源码分析
入口函数
//cmd/kube-apiserver/app/server.go
func Run(completeOptions completedServerRunOptions, stopCh <-chan struct{}) error {
// 完成 server 初始化
server, err := CreateServerChain(completeOptions, stopCh)
if err != nil {
return err
}
//PrepareRun：运行前准备（健康检查、存活检查和OpenAPI路由的注册）
//Run：启动安全的http server提供服务
return server.PrepareRun().Run(stopCh)
}

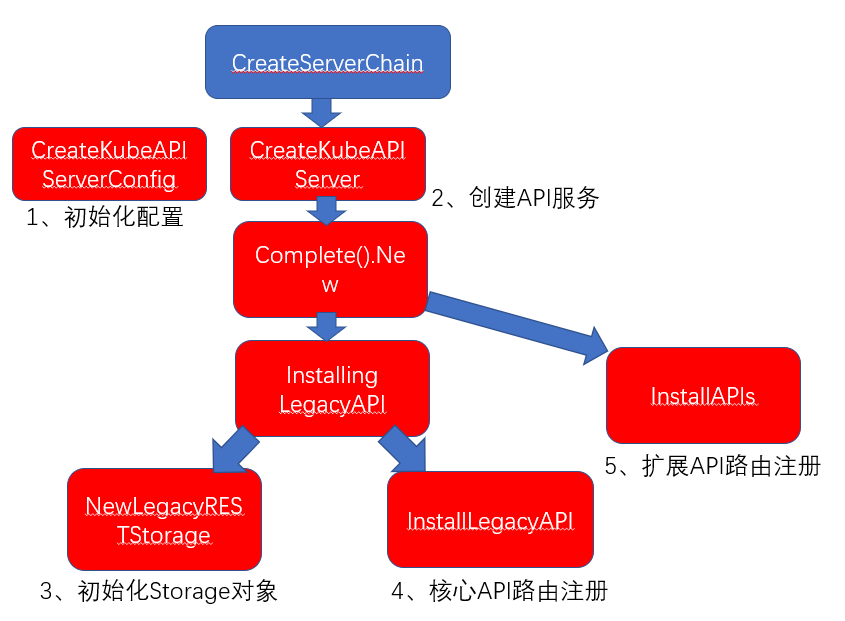

CreateServerChain
//cmd/kube-apiserver/app/server.go
func CreateServerChain(completedOptions completedServerRunOptions, stopCh <-chan struct{}) (*genericapiserver.GenericAPIServer, error) {
nodeTunneler, proxyTransport, err := CreateNodeDialer(completedOptions)
if err != nil {
return nil, err
}
kubeAPIServerConfig, sharedInformers, versionedInformers, insecureServingOptions, serviceResolver, pluginInitializer, admissionPostStartHook, err :=
//创建 KubeAPIServer 所需要的配置（apiServer启动参数配置、分配service的ip、初始化认证授权配置）
CreateKubeAPIServerConfig(completedOptions, nodeTunneler, proxyTransport)
if err != nil {
return nil, err
}
// 判断是否启用了扩展的apiServer ，调用createAPIExtensionsConfig加载扩展apiServer的配置
apiExtensionsConfig, err := createAPIExtensionsConfig(*kubeAPIServerConfig.GenericConfig, versionedInformers, pluginInitializer, completedOptions.ServerRunOptions, completedOptions.MasterCount)
if err != nil {
return nil, err
}
//创建 apiExtensionsServer 实例
apiExtensionsServer, err := createAPIExtensionsServer(apiExtensionsConfig, genericapiserver.NewEmptyDelegate())
if err != nil {
return nil, err
}
// 创建 kubeAPIServer 实例
kubeAPIServer, err := CreateKubeAPIServer(kubeAPIServerConfig, apiExtensionsServer.GenericAPIServer, sharedInformers, versionedInformers, admissionPostStartHook)
if err != nil {
return nil, err
}
kubeAPIServer.GenericAPIServer.PrepareRun()
apiExtensionsServer.GenericAPIServer.PrepareRun()
aggregatorConfig, err := createAggregatorConfig(*kubeAPIServerConfig.GenericConfig, completedOptions.ServerRunOptions, versionedInformers, serviceResolver, proxyTransport, pluginInitializer)
if err != nil {
return nil, err
}
aggregatorServer, err := createAggregatorServer(aggregatorConfig, kubeAPIServer.GenericAPIServer, apiExtensionsServer.Informers)
if err != nil {
return nil, err
}
if insecureServingOptions != nil {
insecureHandlerChain := kubeserver.BuildInsecureHandlerChain(aggregatorServer.GenericAPIServer.UnprotectedHandler(), kubeAPIServerConfig.GenericConfig)
if err := kubeserver.NonBlockingRun(insecureServingOptions, insecureHandlerChain, kubeAPIServerConfig.GenericConfig.RequestTimeout, stopCh); err != nil {
return nil, err
}
}
return aggregatorServer.GenericAPIServer, nil
}
InstallLegacyAPI
//pkg/master/master.go
func (m *Master) InstallLegacyAPI(......) error {
//NewLegacyRESTStorage创建多种资源的 Storage对象
legacyRESTStorage, apiGroupInfo, err := legacyRESTStorageProvider.NewLegacyRESTStorage(restOptionsGetter)
if err != nil {
return fmt.Errorf("Error building core storage: %v", err)
}
......
if err := m.GenericAPIServer.InstallLegacyAPIGroup(genericapiserver.DefaultLegacyAPIPrefix, &apiGroupInfo); err != nil {
return fmt.Errorf("Error in registering group versions: %v", err)
}
return nil
}
通过NewLegacyRESTStorage创建了多种资源的 Storage对象（pod、secret等），Storage保存了资源对象的基本字段信息，也就是apiServer和etcd交互的资源对象数据类型。
//pkg/registry/core/rest/storage_core.go
func (c LegacyRESTStorageProvider) NewLegacyRESTStorage(restOptionsGetter generic.RESTOptionsGetter) (LegacyRESTStorage, genericapiserver.APIGroupInfo, error) {
apiGroupInfo := genericapiserver.APIGroupInfo{
PrioritizedVersions: legacyscheme.Scheme.PrioritizedVersionsForGroup(""),
VersionedResourcesStorageMap: map[string]map[string]rest.Storage{},
Scheme: legacyscheme.Scheme,
ParameterCodec: legacyscheme.ParameterCodec,
NegotiatedSerializer: legacyscheme.Codecs,
}
var podDisruptionClient policyclient.PodDisruptionBudgetsGetter
if policyGroupVersion := (schema.GroupVersion{Group: "policy", Version: "v1beta1"}); legacyscheme.Scheme.IsVersionRegistered(policyGroupVersion) {
var err error
podDisruptionClient, err = policyclient.NewForConfig(c.LoopbackClientConfig)
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
}
}
restStorage := LegacyRESTStorage{}
//创建podTemplate的Storage
podTemplateStorage := podtemplatestore.NewREST(restOptionsGetter)
//创建event的Storage
eventStorage := eventstore.NewREST(restOptionsGetter, uint64(c.EventTTL.Seconds()))
//创建limitRange的Storage
limitRangeStorage := limitrangestore.NewREST(restOptionsGetter)
//创建resourceQuota的Storage
resourceQuotaStorage, resourceQuotaStatusStorage := resourcequotastore.NewREST(restOptionsGetter)
//创建secret的Storage
secretStorage := secretstore.NewREST(restOptionsGetter)
//创建pv的Storage
persistentVolumeStorage, persistentVolumeStatusStorage := pvstore.NewREST(restOptionsGetter)
//创建pvc的Storage
persistentVolumeClaimStorage, persistentVolumeClaimStatusStorage := pvcstore.NewREST(restOptionsGetter)
//创建configMap的Storage
configMapStorage := configmapstore.NewREST(restOptionsGetter)
//创建namespace的Storage
namespaceStorage, namespaceStatusStorage, namespaceFinalizeStorage := namespacestore.NewREST(restOptionsGetter)
//创建endpoint的Storage
endpointsStorage := endpointsstore.NewREST(restOptionsGetter)
//创建node的Storage
nodeStorage, err := nodestore.NewStorage(restOptionsGetter, c.KubeletClientConfig, c.ProxyTransport)
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
}
//创建pod的Storage
podStorage := podstore.NewStorage(
restOptionsGetter,
nodeStorage.KubeletConnectionInfo,
c.ProxyTransport,
podDisruptionClient,
)
var serviceAccountStorage *serviceaccountstore.REST
if c.ServiceAccountIssuer != nil && utilfeature.DefaultFeatureGate.Enabled(features.TokenRequest) {
serviceAccountStorage = serviceaccountstore.NewREST(restOptionsGetter, c.ServiceAccountIssuer, c.ServiceAccountAPIAudiences, podStorage.Pod.Store, secretStorage.Store)
} else {
serviceAccountStorage = serviceaccountstore.NewREST(restOptionsGetter, nil, nil, nil, nil)
}
serviceRESTStorage, serviceStatusStorage := servicestore.NewGenericREST(restOptionsGetter)
var serviceClusterIPRegistry rangeallocation.RangeRegistry
serviceClusterIPRange := c.ServiceIPRange
if serviceClusterIPRange.IP == nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, fmt.Errorf("service clusterIPRange is missing")
}
serviceStorageConfig, err := c.StorageFactory.NewConfig(api.Resource("services"))
if err != nil {
return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
}
serviceClusterIPAllocator := ipallocator.NewAllocatorCIDRRange(&serviceClusterIPRange, func(max int, rangeSpec string) allocator.Interface {
mem := allocator.NewAllocationMap(max, rangeSpec)
// TODO etcdallocator package to return a storage interface via the storageFactory
etcd := serviceallocator.NewEtcd(mem, "/ranges/serviceips", api.Resource("serviceipallocations"), serviceStorageConfig)
serviceClusterIPRegistry = etcd
return etcd
})
restStorage.ServiceClusterIPAllocator = serviceClusterIPRegistry
var serviceNodePortRegistry rangeallocation.RangeRegistry
serviceNodePortAllocator := portallocator.NewPortAllocatorCustom(c.ServiceNodePortRange, func(max int, rangeSpec string) allocator.Interface {
mem := allocator.NewAllocationMap(max, rangeSpec)
// TODO etcdallocator package to return a storage interface via the storageFactory
etcd := serviceallocator.NewEtcd(mem, "/ranges/servicenodeports", api.Resource("servicenodeportallocations"), serviceStorageConfig)
serviceNodePortRegistry = etcd
return etcd
})
restStorage.ServiceNodePortAllocator = serviceNodePortRegistry
controllerStorage := controllerstore.NewStorage(restOptionsGetter)
serviceRest, serviceRestProxy := servicestore.NewREST(serviceRESTStorage, endpointsStorage, podStorage.Pod, serviceClusterIPAllocator, serviceNodePortAllocator, c.ProxyTransport)
// 绑定API路由和对应Storage对象
restStorageMap := map[string]rest.Storage{
"pods": podStorage.Pod,
"pods/attach": podStorage.Attach,
"pods/status": podStorage.Status,
"pods/log": podStorage.Log,
"pods/exec": podStorage.Exec,
"pods/portforward": podStorage.PortForward,
"pods/proxy": podStorage.Proxy,
"pods/binding": podStorage.Binding,
"bindings": podStorage.Binding,
"podTemplates": podTemplateStorage,
"replicationControllers": controllerStorage.Controller,
"replicationControllers/status": controllerStorage.Status,
"services": serviceRest,
"services/proxy": serviceRestProxy,
"services/status": serviceStatusStorage,
"endpoints": endpointsStorage,
"nodes": nodeStorage.Node,
"nodes/status": nodeStorage.Status,
"nodes/proxy": nodeStorage.Proxy,
"events": eventStorage,
"limitRanges": limitRangeStorage,
"resourceQuotas": resourceQuotaStorage,
"resourceQuotas/status": resourceQuotaStatusStorage,
"namespaces": namespaceStorage,
"namespaces/status": namespaceStatusStorage,
"namespaces/finalize": namespaceFinalizeStorage,
"secrets": secretStorage,
"serviceAccounts": serviceAccountStorage,
"persistentVolumes": persistentVolumeStorage,
"persistentVolumes/status": persistentVolumeStatusStorage,
"persistentVolumeClaims": persistentVolumeClaimStorage,
"persistentVolumeClaims/status": persistentVolumeClaimStatusStorage,
"configMaps": configMapStorage,
"componentStatuses": componentstatus.NewStorage(componentStatusStorage{c.StorageFactory}.serversToValidate),
}
if legacyscheme.Scheme.IsVersionRegistered(schema.GroupVersion{Group: "autoscaling", Version: "v1"}) {
restStorageMap["replicationControllers/scale"] = controllerStorage.Scale
}
if legacyscheme.Scheme.IsVersionRegistered(schema.GroupVersion{Group: "policy", Version: "v1beta1"}) {
restStorageMap["pods/eviction"] = podStorage.Eviction
}
if serviceAccountStorage.Token != nil {
restStorageMap["serviceaccounts/token"] = serviceAccountStorage.Token
}
apiGroupInfo.VersionedResourcesStorageMap["v1"] = restStorageMap
return restStorage, apiGroupInfo, nil
}
InstallLegacyAPIGroup –> installAPIResources （为每一个 API resource 调用 apiGroupVersion.InstallREST 添加路由） –> apiGroupVersion.InstallREST （将 restful.WebServic 对象添加到 container 中） –> installer.Install（返回最终的 restful.WebService 对象） –> registerResourceHandlers（通过go-restful框架实现路由和对应handler处理逻辑的绑定）
//staging/src/k8s.io/apiserver/pkg/endpoints/installer.go
func (a *APIInstaller) registerResourceHandlers(path string, storage rest.Storage, ws *restful.WebService) (*metav1.APIResource, error) {
admit := a.group.Admit
......
// 1、判断该 resource 实现了哪些 REST 操作接口，以此来判断其支持的 verbs 以便为其添加路由
creater, isCreater := storage.(rest.Creater)
namedCreater, isNamedCreater := storage.(rest.NamedCreater)
lister, isLister := storage.(rest.Lister)
getter, isGetter := storage.(rest.Getter)
getterWithOptions, isGetterWithOptions := storage.(rest.GetterWithOptions)
gracefulDeleter, isGracefulDeleter := storage.(rest.GracefulDeleter)
collectionDeleter, isCollectionDeleter := storage.(rest.CollectionDeleter)
updater, isUpdater := storage.(rest.Updater)
patcher, isPatcher := storage.(rest.Patcher)
watcher, isWatcher := storage.(rest.Watcher)
connecter, isConnecter := storage.(rest.Connecter)
storageMeta, isMetadata := storage.(rest.StorageMetadata)
storageVersionProvider, isStorageVersionProvider := storage.(rest.StorageVersionProvider)
if !isMetadata {
storageMeta = defaultStorageMetadata{}
}
exporter, isExporter := storage.(rest.Exporter)
if !isExporter {
exporter = nil
}
......
// 2、为 resource 添加对应的 actions 并根据是否支持 namespace
switch {
case !namespaceScoped:
......
actions = appendIf(actions, action{"LIST", resourcePath, resourceParams, namer, false}, isLister)
actions = appendIf(actions, action{"POST", resourcePath, resourceParams, namer, false}, isCreater)
actions = appendIf(actions, action{"DELETECOLLECTION", resourcePath, resourceParams, namer, false}, isCollectionDeleter)
actions = appendIf(actions, action{"WATCHLIST", "watch/" + resourcePath, resourceParams, namer, false}, allowWatchList)
actions = appendIf(actions, action{"GET", itemPath, nameParams, namer, false}, isGetter)
if getSubpath {
actions = appendIf(actions, action{"GET", itemPath + "/{path:*}", proxyParams, namer, false}, isGetter)
}
actions = appendIf(actions, action{"PUT", itemPath, nameParams, namer, false}, isUpdater)
actions = appendIf(actions, action{"PATCH", itemPath, nameParams, namer, false}, isPatcher)
actions = appendIf(actions, action{"DELETE", itemPath, nameParams, namer, false}, isGracefulDeleter)
actions = appendIf(actions, action{"WATCH", "watch/" + itemPath, nameParams, namer, false}, isWatcher)
actions = appendIf(actions, action{"CONNECT", itemPath, nameParams, namer, false}, isConnecter)
actions = appendIf(actions, action{"CONNECT", itemPath + "/{path:*}", proxyParams, namer, false}, isConnecter && connectSubpath)
default:
......
actions = appendIf(actions, action{"LIST", resourcePath, resourceParams, namer, false}, isLister)
actions = appendIf(actions, action{"POST", resourcePath, resourceParams, namer, false}, isCreater)
actions = appendIf(actions, action{"DELETECOLLECTION", resourcePath, resourceParams, namer, false}, isCollectionDeleter)
actions = appendIf(actions, action{"WATCHLIST", "watch/" + resourcePath, resourceParams, namer, false}, allowWatchList)
actions = appendIf(actions, action{"GET", itemPath, nameParams, namer, false}, isGetter)
......
}
// 3、根据 action 创建对应的 route
kubeVerbs := map[string]struct{}{}
reqScope := handlers.RequestScope{
Serializer: a.group.Serializer,
ParameterCodec: a.group.ParameterCodec,
Creater: a.group.Creater,
Convertor: a.group.Convertor,
......
}
......
// 4、从 rest.Storage 到 restful.Route 映射
// 为每个操作添加对应的 handler
for _, action := range actions {
......
verbOverrider, needOverride := storage.(StorageMetricsOverride)
switch action.Verb {
case "GET": ......
case "LIST":
case "PUT":
case "PATCH":
// 此处以 POST 操作进行说明
case "POST":
var handler restful.RouteFunction
// 5、初始化 handler
if isNamedCreater {
handler = restfulCreateNamedResource(namedCreater, reqScope, admit)
} else {
handler = restfulCreateResource(creater, reqScope, admit)
}
handler = metrics.InstrumentRouteFunc(action.Verb, group, version, resource, subresource, requestScope, metrics.APIServerComponent, handler)
article := GetArticleForNoun(kind, " ")
doc := "create" + article + kind
if isSubresource {
doc = "create " + subresource + " of" + article + kind
}
// 6、route 与 handler 进行绑定
route := ws.POST(action.Path).To(handler).
Doc(doc).
Param(ws.QueryParameter("pretty", "If 'true', then the output is pretty printed.")).
Operation("create"+namespaced+kind+strings.Title(subresource)+operationSuffix).
Produces(append(storageMeta.ProducesMIMETypes(action.Verb), mediaTypes...)...).
Returns(http.StatusOK, "OK", producedObject).
Returns(http.StatusCreated, "Created", producedObject).
Returns(http.StatusAccepted, "Accepted", producedObject).
Reads(defaultVersionedObject).
Writes(producedObject)
if err := AddObjectParams(ws, route, versionedCreateOptions); err != nil {
return nil, err
}
addParams(route, action.Params)
// 7、添加到路由中
routes = append(routes, route)
case "DELETE":
case "DELETECOLLECTION":
case "WATCH":
case "WATCHLIST":
case "CONNECT":
default:
}
......
return &apiResource, nil
}
createHandler 与etcd交互流程
//staging/src/k8s.io/apiserver/pkg/endpoints/handlers/create.go
func createHandler(r rest.NamedCreater, scope *RequestScope, admit admission.Interface, includeName bool) http.HandlerFunc {
return func(w http.ResponseWriter, req *http.Request) {
trace := utiltrace.New("Create", utiltrace.Field{"url", req.URL.Path})
defer trace.LogIfLong(500 * time.Millisecond)
......
gv := scope.Kind.GroupVersion()
// 1、得到合适的SerializerInfo
s, err := negotiation.NegotiateInputSerializer(req, false, scope.Serializer)
if err != nil {
scope.err(err, w, req)
return
}
// 2、找到合适的 decoder
decoder := scope.Serializer.DecoderToVersion(s.Serializer, scope.HubGroupVersion)
body, err := limitedReadBody(req, scope.MaxRequestBodyBytes)
if err != nil {
scope.err(err, w, req)
return
}
......
defaultGVK := scope.Kind
original := r.New()
trace.Step("About to convert to expected version")
// 3、decoder 解码
obj, gvk, err := decoder.Decode(body, &defaultGVK, original)
......
ae := request.AuditEventFrom(ctx)
admit = admission.WithAudit(admit, ae)
audit.LogRequestObject(ae, obj, scope.Resource, scope.Subresource, scope.Serializer)
userInfo, _ := request.UserFrom(ctx)
if len(name) == 0 {
_, name, _ = scope.Namer.ObjectName(obj)
}
// 4、执行 kube-apiserver 启动时加载的 admission-plugins（webhook、validation）
admissionAttributes := admission.NewAttributesRecord(......)
if mutatingAdmission, ok := admit.(admission.MutationInterface); ok && mutatingAdmission.Handles(admission.Create) {
err = mutatingAdmission.Admit(ctx, admissionAttributes, scope)
if err != nil {
scope.err(err, w, req)
return
}
}
......
// 5、存入etcd（Create方法由每个Storage对象自己实现）
result, err := finishRequest(timeout, func() (runtime.Object, error) {
return r.Create(
ctx,
name,
obj,
rest.AdmissionToValidateObjectFunc(admit, admissionAttributes, scope),
options,
)
})
......
}
}
三、客户端访问ApiServer流程
